PLC Controlled Plastic Thermoforming Machine for Disposable Cups

Name: PLC Controlled Plastic Thermoforming Machine for Disposable Cups
Brand: Shenzhen Weixin Plastic Machinery Factory
SKU: 660*300mm
Price: 12500 USD
Availability: InStock

Product Details

Place of Origin: made in China

Brand Name: WX

Certification: CE

Model Number: 660*300mm

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: 12500

Packaging Details: 4300*1500*2200mm

Delivery Time: 30Days

Payment Terms: L/C,T/T

Supply Ability: 1

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                PLC controlled thermoforming machine, plastic cup thermoforming machine, disposable cup forming machine


Processing Type:	Heating, Forming, Cutting Into One	Dimensions:	410015002200mm
Water Consumption:	60-70L/min	Use Air Pressure:	0.7-1.0Mpa
Control System:	PLC, Gear	Core Components:	PLC
Years:	2021	Key Selling Points:	Zero Risk Quarantee,Lifetime Technical Support,High Cost Performance
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Certification:	Video Technical Support, Free Spare Parts, Field Installat

Processing Type:	Heating, Forming, Cutting Into One
Dimensions:	410015002200mm
Water Consumption:	60-70L/min
Use Air Pressure:	0.7-1.0Mpa
Control System:	PLC, Gear
Core Components:	PLC
Years:	2021
Key Selling Points:	Zero Risk Quarantee,Lifetime Technical Support,High Cost Performance
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Certification:	Video Technical Support, Free Spare Parts, Field Installat

Product Description

Low Price High Quality Disposable Plastic Cup Manufacturing Machinery

Product Specifications

Attribute	Value
Processing Type	Heating, Forming, Cutting Into One
Dimensions	410015002200mm
Water consumption	60-70L/min
Use air pressure	0.7-1.0Mpa
Control System	PLC, Gear
Core components	PLC
Years	2021
Key selling points	Zero risk guarantee, Lifetime technical support, High cost performance
After-sales Service	Engineers available to service machinery overseas
Certification	Video technical support, Free spare parts, Field installation

Applications

Our cup making machines can produce various plastic container products including:

Disposable plastic cups for cold drinks, fast food, and hot beverages
Jelly cups and dessert containers
Packaging containers for food, beverages, and other products
Environmentally friendly cups made from biodegradable materials like PLA (polylactic acid)

Technical Parameters

Model	WX-720	WX-730	WX-750
Applicable sheet	PP, PS, PET, PVC, PLA etc
Applicable material width	≤730mm	≤750mm	≤750mm
Applicable material thickness	0.15-2.5mm
Maximum forming area	420X730mm	450X750mm	550X750mm
Maximum stroke	200mm
Working efficiency	<30Module/minute	<28Module/minute	-
Maximum heating power	95kw	110kw	110kw
Power supply	380V/50HZ (Three-phase four-wire)
Air pressure	0.6-0.8Mpa
Air consumption	3000L
Water consumption	40-45L/min
Mechanical dimensions	4100X1500X2200mm	4300X1500X2200mm	-
Machine weight	5500kg	6000kg	7000kg

Product Samples

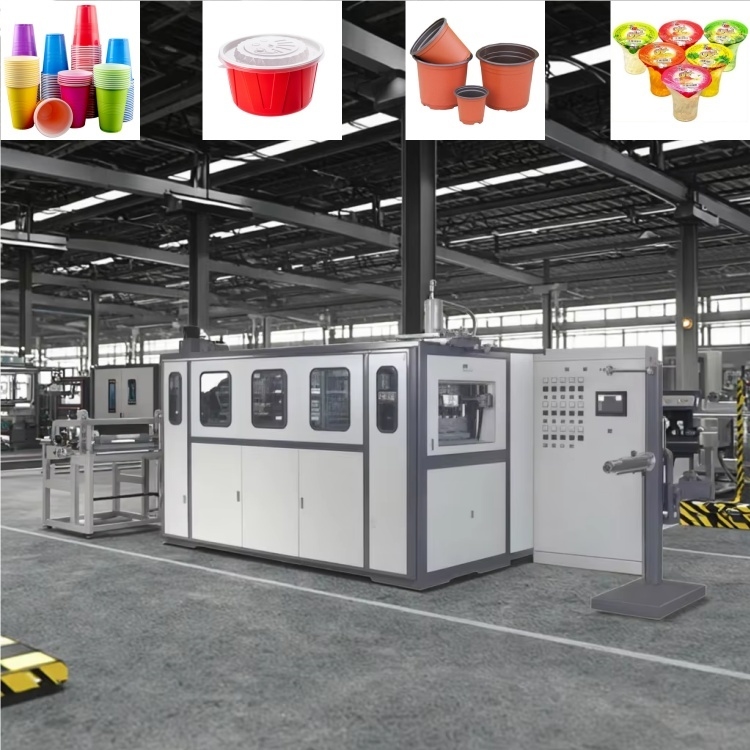

Machine Photos

Production Process

Support and Services

Our comprehensive technical support includes:

Professional installation assistance
Operator and maintenance training
Technical troubleshooting guidance
Genuine spare parts supply
Preventive maintenance programs

Packaging and Shipping

Packaging: Each machine is securely wrapped in protective materials and placed in reinforced packaging to ensure safe transportation.

Shipping: We provide reliable global shipping with tracking information. Standard delivery time is 30 days after order confirmation.

Frequently Asked Questions

What is the brand name of this Plastic Thermoforming Machine?

The brand name is WX.

What is the model number of this Plastic Thermoforming Machine?

The model number is 730*420mm.

Where is this Plastic Thermoforming Machine made?

It is made in China.

Does this Plastic Thermoforming Machine have any certification?

Yes, it is CE certified.

What is the minimum order quantity for this Plastic Thermoforming Machine?

The minimum order quantity is 1 set.

What is the delivery time for this Plastic Thermoforming Machine?

The delivery time is 30 days.
