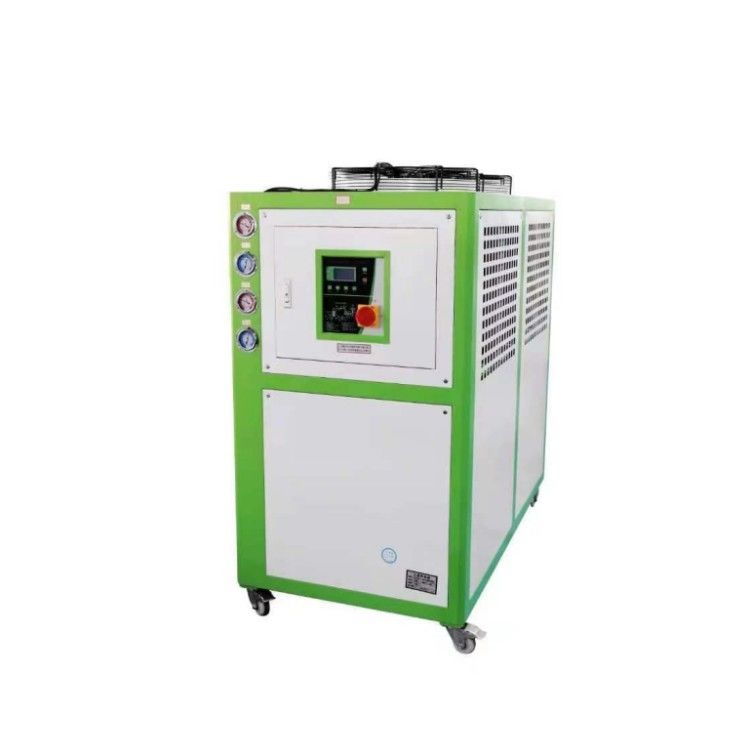

10P Screw Industrial Air Cooled Water Chiller Machine

Product Details

Place of Origin: CHINA

Brand Name: WX

Certification: /

Model Number: 10HP

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD3200/SET

Packaging Details: Wrapping Film

Delivery Time: 30-60DAY

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1SET/30DAY

Get Best Price
Product Details
Highlight:

10P industrial air cooled water chiller

,

Screw industrial air cooled water chiller

,

7.5KW industrial water cooler machine

Total Power Of The Whole Machine:
9.5KW
Cooling Capacity:
21890cal/h; 25.4KW
Input Power Supply:
(+5℃~+35℃ Adjustable; Precision P.I.D±1℃)
Totally Hermetic Scroll Compressor:
3N-380V-50HZ
Pump (motor):
Rated Power 10HP; Input Power: 7.5KW
Water Tank Size:
Rated Power 2HP; Input Power: 1.5KW; Chilled Water Flow 120L/min
Inlet And Outlet Water Piping:
800*420*490mm
Dimensions And Weight:
1 In 1 Out
Warranty:
1 Year
Total Power Of The Whole Machine:
9.5KW
Cooling Capacity:
21890cal/h; 25.4KW
Input Power Supply:
(+5℃~+35℃ Adjustable; Precision P.I.D±1℃)
Totally Hermetic Scroll Compressor:
3N-380V-50HZ
Pump (motor):
Rated Power 10HP; Input Power: 7.5KW
Water Tank Size:
Rated Power 2HP; Input Power: 1.5KW; Chilled Water Flow 120L/min
Inlet And Outlet Water Piping:
800*420*490mm
Dimensions And Weight:
1 In 1 Out
Warranty:
1 Year
Product Description



Chillers, in the industry is divided into air-cooled chillers and water-cooled chillers two, chillers in the temperature control is divided into low-temperature chillers and room temperature chillers, room temperature temperature is generally controlled in the range of 0 degrees -35 degrees. Low temperature machine temperature control is generally in the range of 0 degrees - minus 45 degrees or so.

The liquid refrigerant in the evaporator absorbs the heat in the water and starts to evaporate, and the temperature difference between the refrigerant and the water is formed, and the liquid refrigerant is completely evaporated and becomes gaseous and then is inhaled and compressed by the compressor. process.
10P Screw Industrial Air Cooled Water Chiller Machine 010P Screw Industrial Air Cooled Water Chiller Machine 1
10P Screw Industrial Air Cooled Water Chiller Machine 2
Machine detail photos
10P Screw Industrial Air Cooled Water Chiller Machine 310P Screw Industrial Air Cooled Water Chiller Machine 4
Compressor:Adopt imported Japanese Panasonic high performance press Shrinking machine, high EEP value, low noise, stable operation. This product uses touch dust control panel, adjustable cooling temperature.
Horizontal water pump:Low noise fan motor, superior cooling and condensing effect, stable throttling mechanism, excellent anti-rust treatment .
10P Screw Industrial Air Cooled Water Chiller Machine 510P Screw Industrial Air Cooled Water Chiller Machine 6
Fans:Industrial-grade silence, extremely fast cooling, efficient heat dissipation
Imported electrical appliances:Using imported Snider electrical appliances, imported electrical appliances, quality assurance. Machine durability, more stable
10P Screw Industrial Air Cooled Water Chiller Machine 710P Screw Industrial Air Cooled Water Chiller Machine 8
Control system:Microcomputer control system, automatic control of the whole machine operation, full function Error-proof operating system
Vertical pump models are also available:Low noise fan motor, superior cooling and condensing effect, stable throttling mechanism, excellent anti-rust treatment .
10P Screw Industrial Air Cooled Water Chiller Machine 9
Machine parameters
Total power of the whole machine 9.5KW
Cooling capacity 21890cal/h; 25.4KW
Temperature control range (+5℃~+35℃ adjustable; precision P.I.D±1℃)
Input power supply 3N-380V-50HZ (3 phase 5蕊 380V)
Totally hermetic scroll compressor Rated power 10HP; input power: 7.5KW
Pump (motor) Rated power 2HP; input power: 1.5KW; chilled water flow 120L/min
Water tank size 800*420*490mm
Inlet and outlet water piping 1 in 1 out
Dimensions and weight 1560*800*1600mm;about 250KG

Chillers can be widely used in

10P Screw Industrial Air Cooled Water Chiller Machine 1010P Screw Industrial Air Cooled Water Chiller Machine 11

10P Screw Industrial Air Cooled Water Chiller Machine 1210P Screw Industrial Air Cooled Water Chiller Machine 13
