Product Details
Place of Origin: CHINA
Brand Name: wx
Model Number: 10HP/20HP/30HP
Payment & Shipping Terms
Noise Level: |
Low |
Discharge Temperature: |
≤45℃ |
Power: |
7.5-250kw |
Voltage: |
380V |
Material: |
Cast Iron/Aluminum Alloy |
Cooling System: |
Air/Water |
Pressure: |
6-16 Bar |
Type: |
Rotary Screw Air Compressor |
Noise Level: |
Low |
Discharge Temperature: |
≤45℃ |
Power: |
7.5-250kw |
Voltage: |
380V |
Material: |
Cast Iron/Aluminum Alloy |
Cooling System: |
Air/Water |
Pressure: |
6-16 Bar |
Type: |
Rotary Screw Air Compressor |

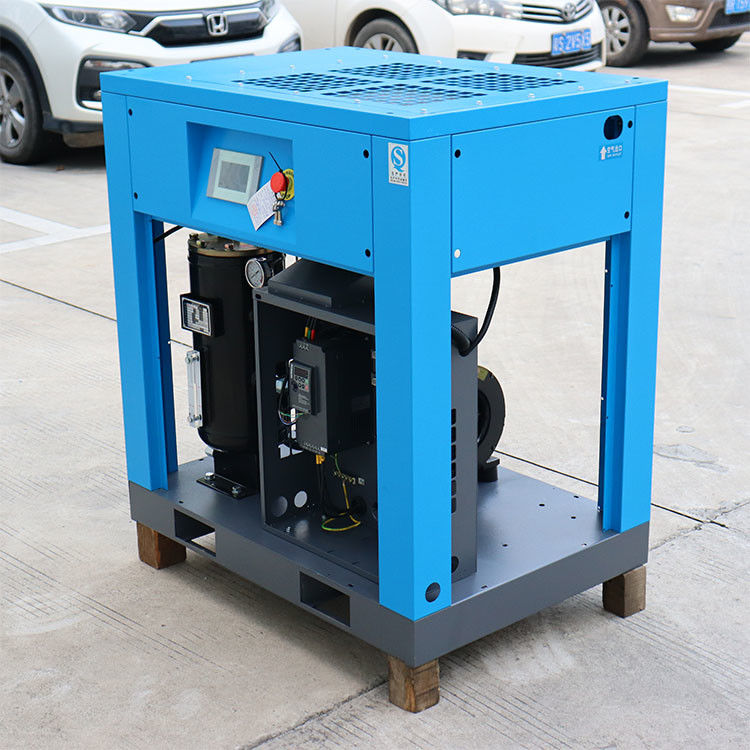

Rotary Screw Air Compressor is a pump air compressor with high pressure, commonly used in industrial applications. It is powered by a 10HP motor and is equipped with a PLC or microcomputer control system, which allows for precise control over the process. This air compressor is made of cast iron or aluminum alloy, depending on the requirements of the application, and is available with either direct or belt drive. The air outlet temperature is kept at a low temperature of ≤80℃, and the discharge temperature is ≤45℃. This air compressor is powerful, durable and reliable, making it the perfect choice for industrial production.
1, screw air compressor has: high stability, high efficiency, small vibration, low noise and other advantages.
2, yin and yang rotor and rotor and casing with the set, so that the gas backflow leakage is less, while there is no gap volume, so high efficiency.
3, sprayed into the lubricating oil with sealing, cooling, noise reduction and lubrication.
4, compared with the piston machine, less wearing parts, lower failure rate.
5, screw compression work curve is smooth, compared with the piston machine vibration is small, low noise.
Parameter | Description |
---|---|
Discharge Temperature | ≤45℃ |
Oil System | Oil-injected/Oil-free |
Drive | Direct/Belt |
Power | 7.5-250kw |
Pressure | 6-16 Bar |
Air Outlet Temperature | ≤80℃ |
Start-up Mode | Y-△/Soft Start |
Noise Level | Low |
Voltage | 380V |
Flow Rate | 0.8-50 M³/min |
Industrial Manufacturing: Screw air compressors are widely used in a variety of industrial manufacturing areas, such as automotive manufacturing, machining, electronics manufacturing, plastics processing, and so on. They are used to supply compressed air to drive pneumatic tools, mechanical equipment and pneumatic systems on production lines. For example, screw air compressors can be used to drive pneumatic drills, pneumatic screwdrivers, spray guns, pneumatic conveying systems, etc.
Building & Construction: In the building and construction industry, screw compressors are used to supply compressed air to drive various pneumatic tools and equipment. For example, they can be used to drive pneumatic hammers, pneumatic nail guns, spraying equipment, concrete sprayers and more. In addition, screw compressors are used for cleaning, exhaust and ventilation systems on construction sites.
Medical and pharmaceutical: Screw air compressors also have important applications in the medical and pharmaceutical sectors. They are used to supply clean compressed air for pneumatic equipment in hospitals, tools in operating theatres and gas handling in pharmaceutical processes. Clean, oil-free compressed air is essential for the safety and reliability of medical and pharmaceutical processes.
We offer comprehensive technical support and service for rotary screw air compressors. Our team of experienced technicians provide maintenance, installation, and troubleshooting services for rotary screw air compressors of all makes and models.
We offer preventative maintenance services that help ensure that rotary screw air compressors are operating at peak efficiency. We also offer repair services for any component failures or malfunctions that may occur. Our technicians are trained to quickly identify and diagnose any problem with a rotary screw air compressor.
We also provide installation services for rotary screw air compressors. Our technicians are knowledgeable in all aspects of installation and can ensure that the compressor is installed properly and is running optimally.
Our team is available 24/7 to provide technical support and services for rotary screw air compressors. We are committed to providing quick and efficient service and will ensure that your compressor is running properly in no time.
