Home > products > Plastic Thermoforming Machine > Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates

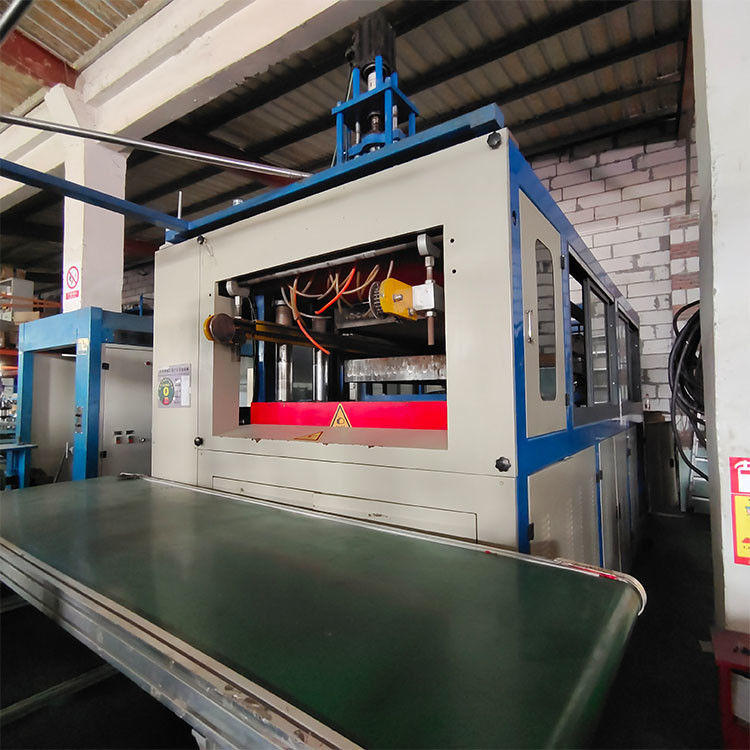

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates

Product Details

Place of Origin: China

Brand Name: WX

Certification: CE

Model Number: 850

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD19700/SET

Packaging Details: Plastic Wrap Film

Delivery Time: 30-60DAY

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1SET/30DAY

Get Best Price
Product Details
High Light:

Second Hand Plastic Thermoforming Machine

,

Cups Plastic Thermoforming Machine

Adapt To Material:
PP, PS, PET, PVC, ABS, Degradable Materials, Etc.
Applicable Sheet Thickness:
0.3-2.0㎜
Applicable Sheet Width:
850mm
Maximum Forming Area:
810×600mm
Maximum Forming Depth:
220㎜
Work Efficiency:
≤32 Mold Times/minute
Heating Rated Power:
130kw
Main Motor Power:
18.5kw
Tension Servo:
5.5kw
Film Feeding Motor:
4KW
Using Electric:
380V/50Hz (three-phase Four-wire)
Use Air Pressure:
0.6-0.8Mpa
Air Consumption:
5000~6000L/min
Water Consumption:
50-60L/min
Years:
2021
Warranty::
1 Year
After-sales Service::
Free Spare Parts, Video Technical Guidance, Remote Installation Support, On-site Installation And Training If Required
Adapt To Material:
PP, PS, PET, PVC, ABS, Degradable Materials, Etc.
Applicable Sheet Thickness:
0.3-2.0㎜
Applicable Sheet Width:
850mm
Maximum Forming Area:
810×600mm
Maximum Forming Depth:
220㎜
Work Efficiency:
≤32 Mold Times/minute
Heating Rated Power:
130kw
Main Motor Power:
18.5kw
Tension Servo:
5.5kw
Film Feeding Motor:
4KW
Using Electric:
380V/50Hz (three-phase Four-wire)
Use Air Pressure:
0.6-0.8Mpa
Air Consumption:
5000~6000L/min
Water Consumption:
50-60L/min
Years:
2021
Warranty::
1 Year
After-sales Service::
Free Spare Parts, Video Technical Guidance, Remote Installation Support, On-site Installation And Training If Required
Product Description

Thermoforming Cup Making Machine

This machine can produce, heat the PP, PET, HIPS, PLA and other thermoplastic coil materials C through the mold into various shapes of cups, bowls, lunch boxes and other food containers. The products are high temperature resistant, beautiful and transparent, which greatly improves the competition of the products. force.

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 0

Product details

                                      Motor motors

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 1

                                        Electrical box control cabinet

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 2 Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 3

                                   Servo stretching

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 4

Cup making machines are currently the main machinery for manufacturing plastic cups in supermarkets, shopping malls and other places.
This machinery has the role of producing disposable paper cups, lunch boxes, plastic boxes, plastic cups etc. For the cups currently used in the market, they are generally manufactured by this machinery.
This machinery can be applied to a variety of raw materials, such as pvc, pet, pp, etc. It can also process plastic packaging products related to medicine, light industry, textile, tourism, toys, etc.
It is characterised by:
1,The whole machine integrates sheet feeding, heating, stretching, forming and edge cutting at one time.
2, high efficiency, energy saving, safety and environmental protection, high qualified rate of finished products.
3,The raw materials are widely adaptable. Such as PS, PP, PVC, PET, ABS and other plastic sheet can be processed and produced.
4,Integration of machine, electricity and gas; with manual, semi-automatic and automatic functions.

Products produced

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 5

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 6

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 7

Machine parameters

Adapt to material PP, PS, PET, PVC, ABS, degradable materials, etc.
Applicable sheet thickness 0.3-2.0㎜
Applicable sheet width 850mm
Maximum forming area 810×600mm
Maximum Forming Depth 220㎜
work efficiency ≤32 mold times/minute
Heating rated power 130kw
main motor power 18.5kw
Tension servo 5.5kw
Film feeding motor 4KW
using electric 380V/50Hz (three-phase four-wire)
use air pressure 0.6-0.8Mpa
Air consumption 5000~6000L/min
Water Consumption 50-60L/min



Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 8



Machine tooling (customised to the customer's product)

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 9Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 10Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 11

Why choose us?

Shenzhen Weixin Plastic Machinery Factory is a professional plastic complete set of equipmentintegrating R&D,production and sales: blister machine, positive and negative pressure integratedmachine, PET, PP, PS sheet extruder, plate machine, cup making machine and other plasticequipment, has many years of history, the company has strong technical force, a group of skilled andexperienced professionals, machinery with excellent, stable performance and optimized operatingsystem, has won the trust of our customers. Customers all over China and many foreign countries, thecompany takes: quality first, service first, professional technology for the purpose, to provide ourcustomers with higher quality machinery, keep improving, keep pace with the times, and constantlyinnovate is our company's perseverance Pursue.

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 12

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 13Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 14

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 15Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 16

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 17

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 18

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 19

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 20

Second Hand Plastic Thermoforming Machine For Making Plastic Cups Plates 21

FAQ
Q1: Are you a factory or trading company?
A1: We are factory
Q2: What is your hot items?
A1: Our company is specialized in automatic blister vacuum forming machine, small automatic vacuum molding machine, old sheet
machine, precision four-post hydraulic cutting machine, Thick plastic sheet forming machine, blister folding machine, plastic
thermal sealing packing machine, and so on plastic equipment for more than twenty years
Q3. Are all your products available in stock?
A1: Some products are available in stock. Please consult customer service for details to check the inventory quantity at that
time.
Q4. What is your lead time?
A1: Inventory: Generally 5-15 days, some goods are in stock, please contact customer service for details, or please contact us by
email, according to the number of your order to determine the specific delivery date
Q5. Do you take OEM or ODM orders?
A1: Yes, we accept OEM and ODM from customers
Q6: How about the Shipping Method?
A1: DHL/UPS/TNT/ FedEx are available by air and sea. In a word, we can ship anything you want.
Q7: What are the terms of payment?
A1: II, PAYPEL West Union
