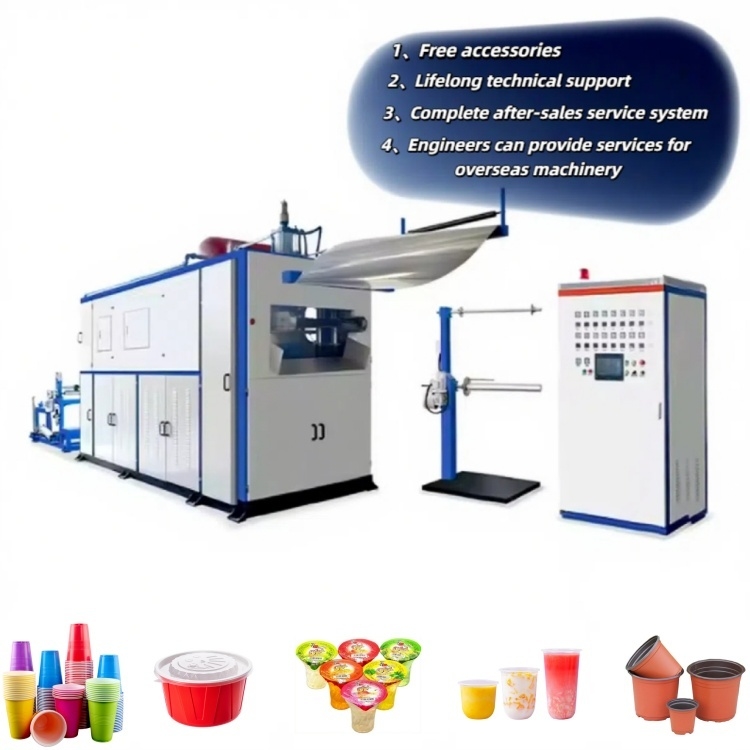

Plastic Cup Making Machine 4100x1500x2200mm with PLC Control

Name: Plastic Cup Making Machine 4100x1500x2200mm with PLC Control
Brand: Shenzhen Weixin Plastic Machinery Factory
SKU: 730*420mm
Price: 12500 USD
Availability: InStock

Product Details

Place of Origin: made in China

Brand Name: WX

Certification: CE

Model Number: 730*420mm

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: 12500

Packaging Details: 4300*1500*2200mm

Delivery Time: 30Days

Payment Terms: L/C,T/T

Supply Ability: 1

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Plastic cup making machine with PLC control, Thermoforming machine for plastic cups, Large plastic cup machine 4100x1500x2200mm


Processing Type:	Heating, Forming, Cutting Into One	Dimensions:	410015002200mm
Water Consumption:	60-70L/min	Use Air Pressure:	0.7-1.0Mpa
Control System:	PLC, Gear	Core Components:	PLC
Years:	2021	Key Selling Points:	Zero Risk Quarantee,Lifetime Technical Support,High Cost Performance
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Certification:	Video Technical Support, Free Spare Parts, Field Installat

Processing Type:	Heating, Forming, Cutting Into One
Dimensions:	410015002200mm
Water Consumption:	60-70L/min
Use Air Pressure:	0.7-1.0Mpa
Control System:	PLC, Gear
Core Components:	PLC
Years:	2021
Key Selling Points:	Zero Risk Quarantee,Lifetime Technical Support,High Cost Performance
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Certification:	Video Technical Support, Free Spare Parts, Field Installat

Product Description

China Factory Direct Supply Plastic Cup Making Machine

Low Price High Quality Plastic Bowl Making Machine with versatile applications across multiple industries.

Applications

Plastic cups: including disposable plastic cups, suitable for cold drinks, fast food, and hot beverages
Jelly cups: plastic containers for packaging jelly and other desserts
Packaging containers: plastic packaging for various products including food and beverages
Beverage cups: specially designed for holding various drinks
Environmentally friendly cups: can use biodegradable materials like PLA (polylactic acid)

Technical Parameters

Model	WX-720	WX-730	WX-750
Applicable sheet	PP, PS, PET, PVC, PLA etc
Applicable material width	≤730mm	≤750mm	≤750mm
Applicable material thickness	0.15-2.5mm
Maximum forming area	420*730mm	450*750mm	550*750mm
Maximum stroke	200mm
Working efficiency	<30Module/minute	<28Module/minute	<28Module/minute
Maximum heating power	95kw	110kw	110kw
Power supply	380V/50HZ (Three-phase four-wire)
Air pressure	0.6-0.8Mpa
Air consumption	3000L
Water consumption	40-45L/min
Mechanical dimensions	410015002200mm	430015002200mm	430015002200mm
Machine weight	5500kg	6000kg	7000kg

Sample Product

Machine Production Process

Support and Services

Installation assistance
Training for machine operation and maintenance
Troubleshooting guidance
Spare parts ordering and replacement
Regular maintenance and servicing options

Packing and Shipping

Product Packaging: The machine is carefully packaged with protective materials in sturdy cardboard boxes to prevent transit damage.

Shipping: We offer reliable shipping services with tracking numbers provided for shipment monitoring.

Frequently Asked Questions

Q: What is the brand name of this Plastic Thermoforming Machine?

A: The brand name is WX.

Q: What is the model number of this Plastic Thermoforming Machine?

A: The model number is 730*420mm.

Q: Where is this Plastic Thermoforming Machine made?

A: It is made in China.

Q: Does this Plastic Thermoforming Machine have any certification?

A: Yes, it is CE certified.

Q: What is the minimum order quantity for this Plastic Thermoforming Machine?

A: The minimum order quantity is 1 set.

Q: What is the delivery time for this Plastic Thermoforming Machine?

A: The delivery time is 30 days.
