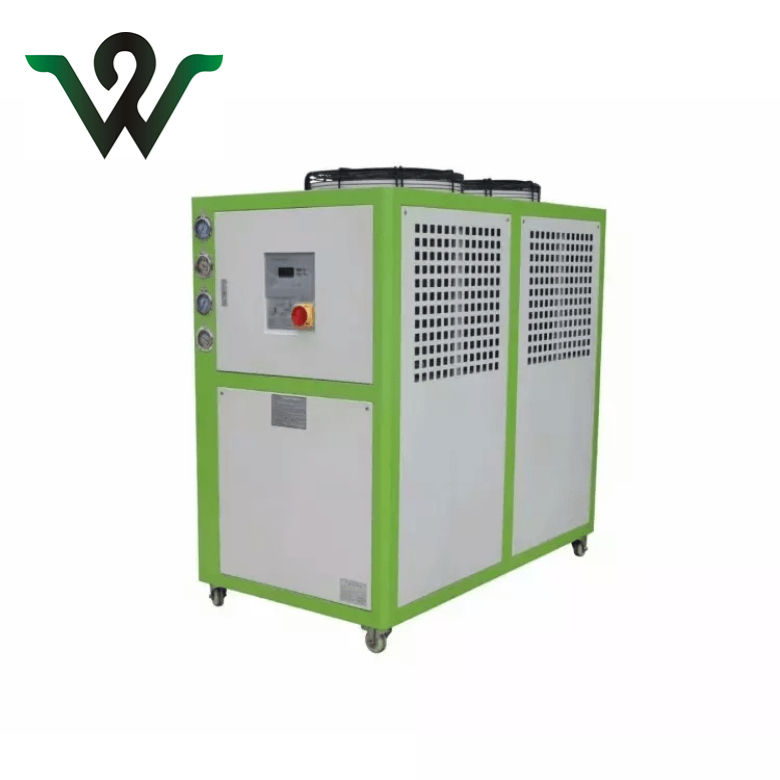

Screw Scroll Centrifugal Industrial Water Chiller With Air Water Evaporative Cooling

Product Details

Place of Origin: china

Brand Name: wx

Model Number: 3hp/5hp/10hp

Payment & Shipping Terms

Get Best Price
Product Details
High Light:

Screw Industrial Water Chiller

,

Centrifugal Industrial Water Chiller

Product Name:
Industrial Water Chiller
Cooling Capacity:
5-2000KW
Protection:
High/Low Pressure/Overload/Phase Sequence/Lack Of Phase/Anti-freezing
Compressor Type:
Screw/Scroll/Centrifugal
Frequency:
50HZ/60HZ
Cooling Method:
Air/Water/Evaporative
Noise Level:
≤65dB(A)
Refrigerant:
R22/R407C/R134A
Product Name:
Industrial Water Chiller
Cooling Capacity:
5-2000KW
Protection:
High/Low Pressure/Overload/Phase Sequence/Lack Of Phase/Anti-freezing
Compressor Type:
Screw/Scroll/Centrifugal
Frequency:
50HZ/60HZ
Cooling Method:
Air/Water/Evaporative
Noise Level:
≤65dB(A)
Refrigerant:
R22/R407C/R134A
Product Description

Product Description:

Industrial Water Chiller is a refrigeration system specially designed for large industrial applications. It provides effective cooling for large areas and has a cooling capacity of 5 to 2000KW, with adjustable frequency of 50HZ or 60HZ and voltage of 220V/380V/440V/480V/600V. The cooling medium can be water or glycol, and the compressor type available are scroll, screw and centrifugal. It is especially suitable for plastic industry, providing reliable and efficient cooling for water chillers with 5 hp or more. Its advanced screw compressor technology ensures excellent performance, high efficiency and energy savings.

Screw Scroll Centrifugal Industrial Water Chiller With Air Water Evaporative Cooling 0

Features:

1. All pipeline insulation design to prevent local convection in the body pipeline. Cooling temperature range 5℃-35℃, independent temperature controller anti-freezing protection.
2. Stainless steel insulated water tank.
3. Hydrophilic light fin condenser, better heat transfer, faster heat dissipation.
4. Compressor and pump have overload protection.



Technical Parameters:

Product Name Industrial Water Chiller
Compressor Type Screw/Scroll/Centrifugal
Condenser Shell And Tube/Plate Heat Exchanger
Noise Level ≤65dB(A)
Frequency 50HZ/60HZ
Refrigerant R22/R407C/R134A
Controller PLC/Microcomputer
Cooling Method Air/Water/Evaporative
Evaporator Shell And Tube/Plate Heat Exchanger
Voltage 220V/380V/440V/480V/600V


Applications:

Electronic industry: stabilize the molecular structure of electronic components on the production line, improve the qualified rate of electronic components, apply to the ultrasonic cleaning industry, effectively prevent the volatilization of expensive cleaning agents and the harm caused by volatilization.
Electroplating industry: Control the electroplating temperature, increase the density and smoothness of the plated parts, shorten the electroplating cycle, increase production efficiency, and improve product quality.
Mechanical industry: control the pressure oil temperature of the oil pressure system, stabilize the oil temperature and oil pressure, prolong the service life of the oil quality, improve the efficiency of mechanical lubrication, and reduce wear and tear.
Construction industry: supply chilled water for concrete, make the molecular structure of concrete suitable for construction purposes, and effectively enhance the hardness and toughness of concrete.
Vacuum coating: control the temperature of the vacuum coating machine to ensure the high quality of the coating.

Screw Scroll Centrifugal Industrial Water Chiller With Air Water Evaporative Cooling 1

Customization:

Industrial Water Chiller:
Brand Name: wx
Model Number: 3hp/5hp/10hp
Place of Origin: China
Cooling Capacity: 5-2000KW
Design Temperature: -20℃~+20℃
Controller: PLC/Microcomputer
Condenser: Shell And Tube/Plate Heat Exchanger
Cooling Medium: Water/Glycol

Screw Water Cooled Industrial Chiller:
Our wx industrial water chiller is designed with screw water cooled technology to provide precise temperature control and superior efficiency. Our industrial chillers are designed to ensure reliable operation and long service life, even in the harshest working conditions. Our screw water cooled industrial chillers can be used for a variety of applications, such as cooling processes in the food, beverage, chemical, and pharmaceutical industries.
Water Chiller 5 HP:
Our wx water chillers are available in a wide range of cooling capacities, from 5 HP to 10 HP. Our 5 HP chillers are designed to provide reliable cooling for a range of applications, from commercial to industrial. Our chillers are equipped with the latest technology, including microprocessor and PLC controllers, for precise temperature control and efficient operation.
Industrial Chiller Air Cooled:
Our wx industrial chillers are also available in air-cooled designs. Our air-cooled chillers are designed to provide reliable cooling for a wide range of applications, from commercial to industrial. Our chillers are equipped with the latest technology, including microprocessor and PLC controllers, for precise temperature control and efficient operation.



Support and Services:

Technical Support and Service for Industrial Water Chiller

We provide complete technical support and service for industrial water chillers. Our experienced and knowledgeable technicians will assist you in troubleshooting any issues you may have with your chiller. We also provide preventive maintenance services to ensure the efficient operation of your chiller.

We have a wide range of spare parts available for both new and older models of industrial water chillers. This includes replacement pumps, compressors, and other essential components. Our technicians are knowledgeable about all types of chillers and can help you identify the correct parts for your chiller.

We also provide installation, repair, and maintenance services for industrial water chillers. Our team of experienced technicians can ensure that your chiller is properly installed and maintained for optimal performance. We also provide on-site training and support for operating and troubleshooting your chiller.

For more information about our technical support and service for industrial water chillers, please contact us today.
