Product Details
Place of Origin: made in China
Brand Name: WX
Certification: CE
Model Number: 730*420mm
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: 12500
Packaging Details: 4300*1500*2200mm
Delivery Time: 30Days
Payment Terms: L/C,T/T
Supply Ability: 1
Processing Type: |
Heating, Forming, Cutting Into One |
Dimensions: |
4100*1500*2200mm |
Water Consumption: |
60-70L/min |
Use Air Pressure: |
0.7-1.0Mpa |
Control System: |
PLC, Gear |
Core Components: |
PLC |
Years: |
2019 |
Key Selling Points: |
Easy To Operate |
Processing Type: |
Heating, Forming, Cutting Into One |
Dimensions: |
4100*1500*2200mm |
Water Consumption: |
60-70L/min |
Use Air Pressure: |
0.7-1.0Mpa |
Control System: |
PLC, Gear |
Core Components: |
PLC |
Years: |
2019 |
Key Selling Points: |
Easy To Operate |

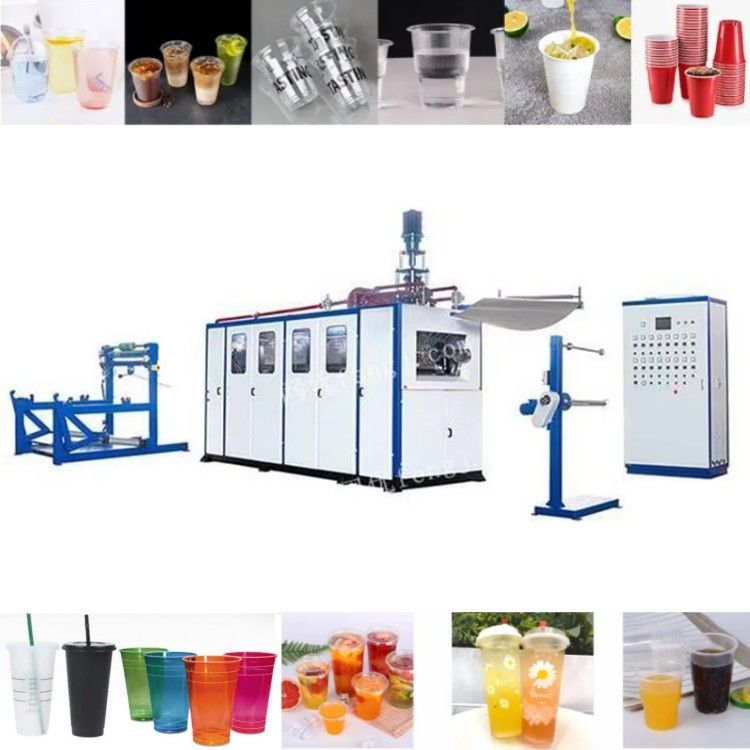

Cup making machines can produce a variety of plastic container products, mainly including but
not limited to the following categories:1.Plastic cups: including disposable plastic cups, suitable for cold drinks, fast food, hot drinks and
other applications
2.Jelly cups: plastic containers for packaging jelly and other dessertsPackaging containers: plastic packaging containers for various products, such as food, beverages.etc.
3.Beverage cups: plastic cups especially suitable for holding various beveragesEnvironmentally friendly cups and packaging: For companies seeking green and environmental4.protection, cup making machines can also use biodegradable plastic materials such as PLA(polylactic acid) to produce environmentally
| Model: | WX-720 | WX-730 | WX-750 |
| Applicable sheet: | PP,PS,PET,PVC,PLA etc | ||
| Applicable material width: | ≤730mm | ≤750mm | ≤750mm |
| Applicable material thickness: | 0.15-2.5mm | ||
| Maximum forming area: | 420X730mm | 450X750mm | 550X750mm |
| Maximum stroke: | 200mm | ||
| Working efficiency: | <30Module/minute | <28Module/minute | |
| Maximum heating power: | 95kw | 110kw | 110kw |
| Power supply: | 380V/50HZ(Three-phase four-wire) | ||
| Air pressure: | 0.6-0.8Mpa | ||
| Air consumption: | 3000L | ||
| Water consumption: | 40-45L/min | ||
| Mechanical dimensions: | 4100X1500X2200mm | 4300X1500X2200mm | |
| Machine weight: | 5500kg | 6000kg | 7000kg |
