Product Details
Place of Origin: made in China
Brand Name: WX
Certification: CE
Model Number: 850*460mm
Payment & Shipping Terms
Minimum Order Quantity: 1SET
Price: 18571
Packaging Details: 4300*1500*2200mm
Delivery Time: 30Days
Payment Terms: L/C,T/T
Supply Ability: 1
Processing Type: |
Heating, Forming, Cutting Into One |
Dimensions: |
4100*1500*2200mm |
Water Consumption: |
60-70L/min |
Use Air Pressure: |
0.7-1.0Mpa |
Control System: |
PLC, Gear |
Core Components: |
PLC |
Key Selling Points: |
Easy To Operate |
Molding Area: |
850*460mm |
Machine Status: |
Used |
Processing Type: |
Heating, Forming, Cutting Into One |
Dimensions: |
4100*1500*2200mm |
Water Consumption: |
60-70L/min |
Use Air Pressure: |
0.7-1.0Mpa |
Control System: |
PLC, Gear |
Core Components: |
PLC |
Key Selling Points: |
Easy To Operate |
Molding Area: |
850*460mm |
Machine Status: |
Used |

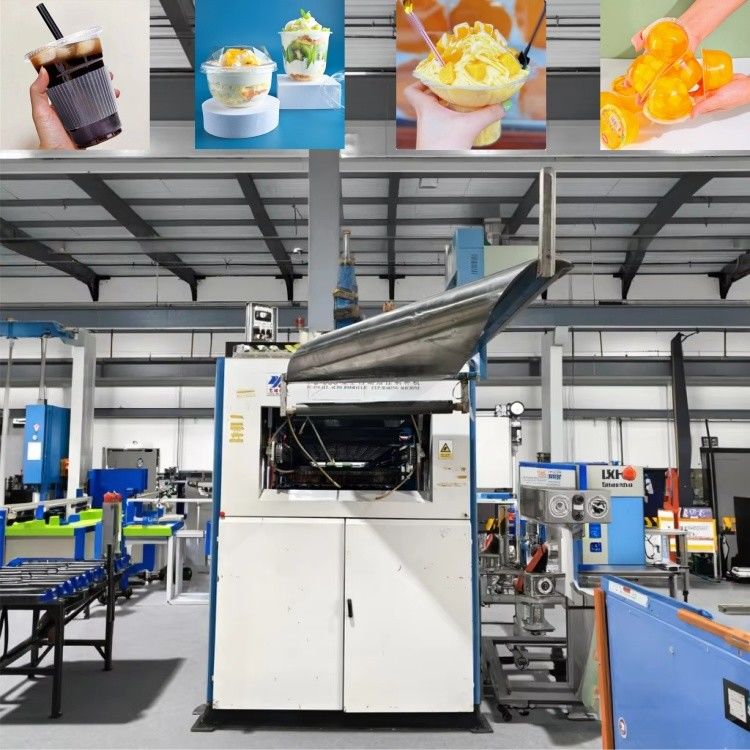

Cup making machines can produce a variety of plastic container products, mainly including but
not limited to the following categories:1.Plastic cups: including disposable plastic cups, suitable for cold drinks, fast food, hot drinks and
other applications
2.Jelly cups: plastic containers for packaging jelly and other dessertsPackaging containers: plastic packaging containers for various products, such as food, beverages.etc.
3.Beverage cups: plastic cups especially suitable for holding various beveragesEnvironmentally friendly cups and packaging: For companies seeking green and environmental4.protection, cup making machines can also use biodegradable plastic materials such as PLA(polylactic acid) to produce environmentally
| Model: | WX-720 | WX-730 | WX-750 |
| Applicable sheet: | PP,PS,PET,PVC,PLA etc | ||
| Applicable material width: | ≤730mm | ≤750mm | ≤750mm |
| Applicable material thickness: | 0.15-2.5mm | ||
| Maximum forming area: | 420X730mm | 450X750mm | 550X750mm |
| Maximum stroke: | 200mm | ||
| Working efficiency: | <30Module/minute | <28Module/minute | |
| Maximum heating power: | 95kw | 110kw | 110kw |
| Power supply: | 380V/50HZ(Three-phase four-wire) | ||
| Air pressure: | 0.6-0.8Mpa | ||
| Air consumption: | 3000L | ||
| Water consumption: | 40-45L/min | ||
| Mechanical dimensions: | 4100X1500X2200mm | 4300X1500X2200mm | |
| Machine weight: | 5500kg | 6000kg | 7000kg |
Our Product Technical Support and Services for the Plastic Thermoforming Machine include:
- Installation assistance
- Training for machine operation and maintenance
- Troubleshooting guidance
- Spare parts ordering and replacement
- Regular maintenance and servicing options
Product Packaging:
The Plastic Thermoforming Machine is carefully packaged to ensure safe delivery. It is securely wrapped in protective materials and placed in a sturdy cardboard box to prevent any damage during transit.
Shipping:
We offer reliable shipping services for the Plastic Thermoforming Machine. Once your order is processed, the machine will be dispatched promptly to your specified address. You can track your shipment using the provided tracking number to monitor its delivery status.
Q: What is the brand name of this Plastic Thermoforming Machine?
A: The brand name is WX.
Q: What is the model number of this Plastic Thermoforming Machine?
A: The model number is 850*460mm.
Q: Where is this Plastic Thermoforming Machine made?
A: It is made in China.
Q: Does this Plastic Thermoforming Machine have any certification?
A: Yes, it is CE certified.
Q: What is the minimum order quantity for this Plastic Thermoforming Machine?
A: The minimum order quantity is 1 set.
Q: What is the delivery time for this Plastic Thermoforming Machine?
A: The delivery time is 30 days.
